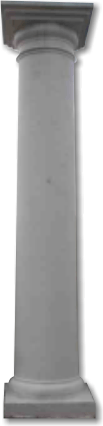

Plain Round Tapered 1200mm, 1500mmStrength: 30 MPaWeight: 1200 - 100 kg 1500 - 119 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

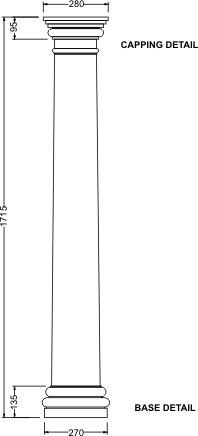

Plain Round Tapered 1715mmStrength: 30 MPaWeight: 133 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

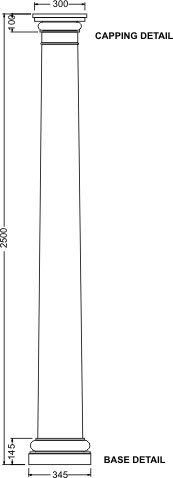

Plain Round Tapered 2500mmStrength: 30 MPaWeight: 265 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

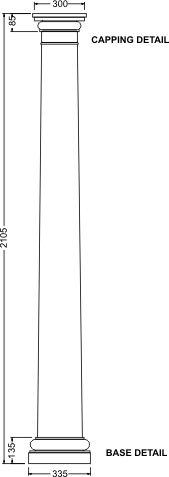

Plain Round Tapered 2105mmStrength: 30 MPaReinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

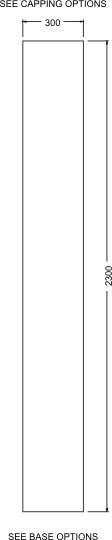

Plain Round 2300mmStrength: 30 MPaReinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
||
Plain Round 3000mmStrength: 30 MPaReinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
||
Capping Options for Plain Round 2300 & 3000 | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Base Options for Plain Round 2300 & 3000 | |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Fluted Round 2105mmStrength: 30 MPaWeight: 224 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% |
|
![]() |
![]() |
![]() |
|

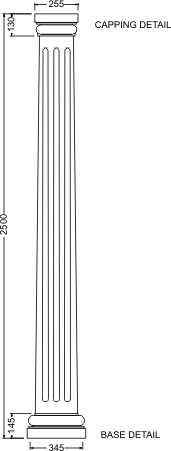

Fluted Round 2500mmStrength: 30 MPaWeight: 265 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% |
|
![]() |
![]() |
![]() |
|
Fluted Square 2100mm, 2500mmStrength: 30 MPaWeight: 2100 - 237 kg 2500 - 286 kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% |
|
![]() |
![]() |
![]() |
|

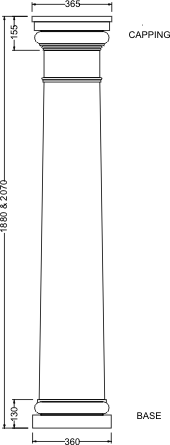

Harold Cressy 1880mm, 2070mmStrength: 30 MPaWeight: 1880mm - 303kg 2070mm - 331kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

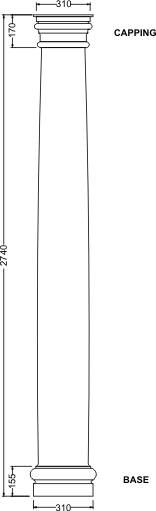

Claudia Plain Round 2740mmStrength: 30 MPaWeight: 310kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% | ![]() |
|
![]() |
![]() |
|
![]() |
||

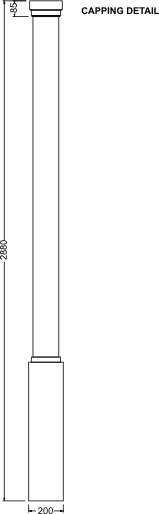

GC Column 2880mmStrength: 30 MPaWeight: 174kg Reinforcement: 4Y12 Vertical bars with R8 stirrups at 200% |
|
![]() |
![]() |
